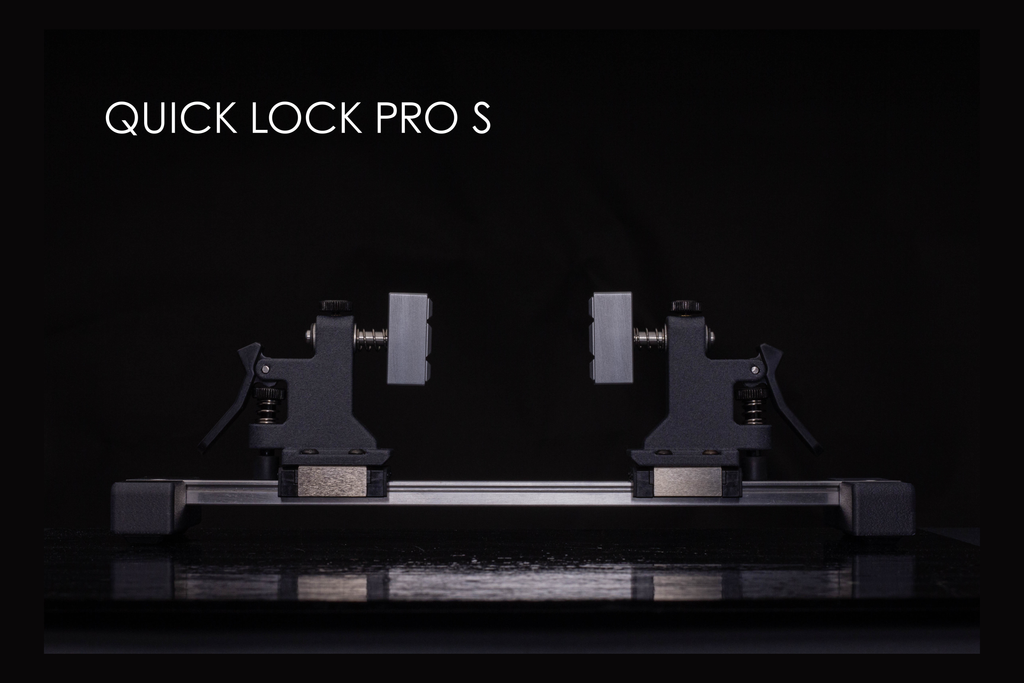

QUICK LOCK PRO – Precision PCB Holder for Soldering
Lock your PCB in seconds — no tools, no fumbling, no slipping. The Quick Lock Pro is a precision PCB holder built for engineers and makers who demand more from their bench tools.
Stainless Steel Rails Smooth, corrosion-resistant rails give you effortless board positioning with zero slop. Slide your PCB into place and lock it down in seconds.
Machined Aluminum Jaws CNC machined from aluminum with V-shaped grips that bite into your board's edge and hold it exactly where you put it, no matter how long the session runs.
Quick Lock Mechanism A cam-driven, one-finger locking mechanism lets you swap boards in seconds — no tools, no adjustments. Load, lock, solder. That's it.

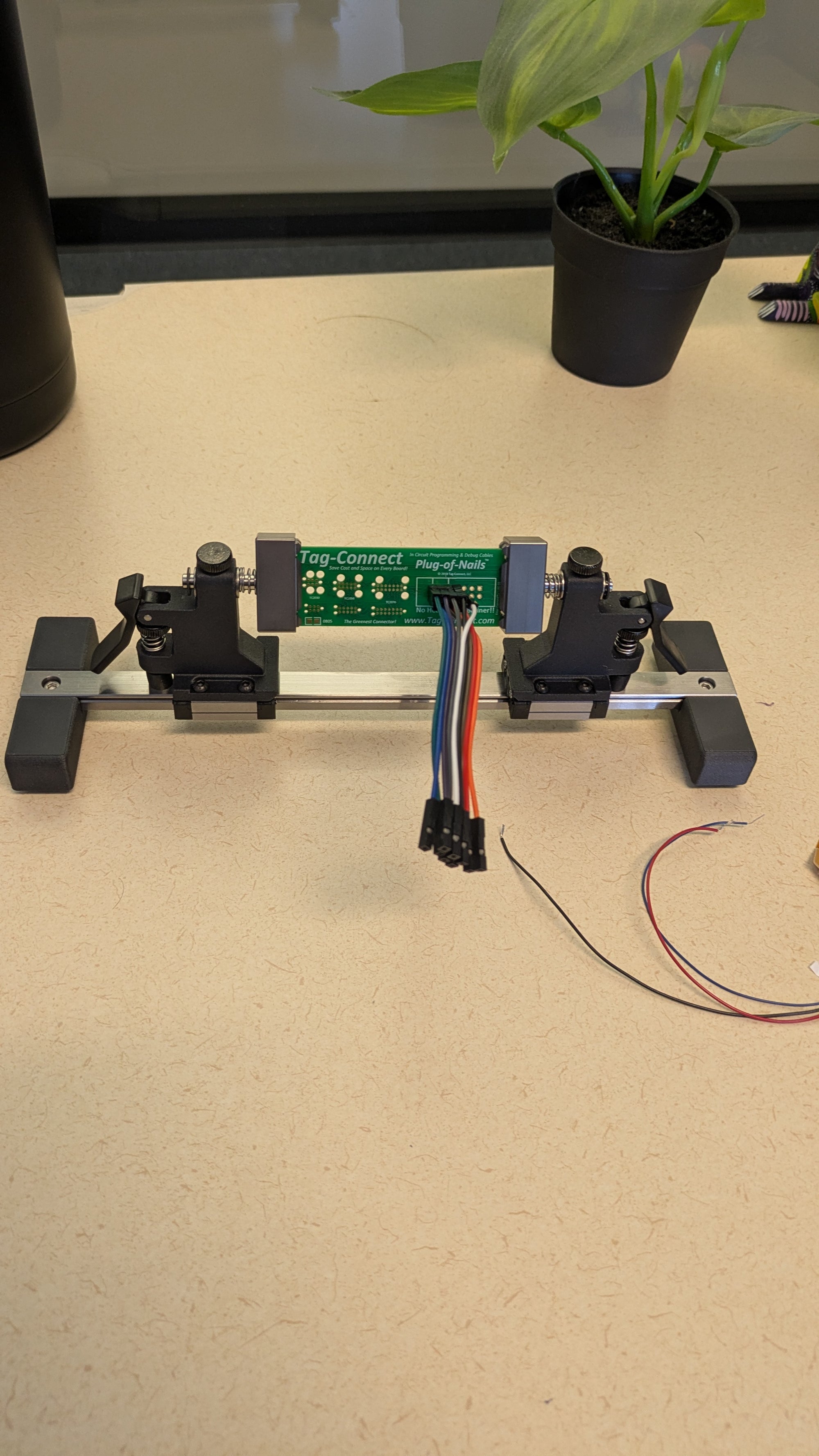

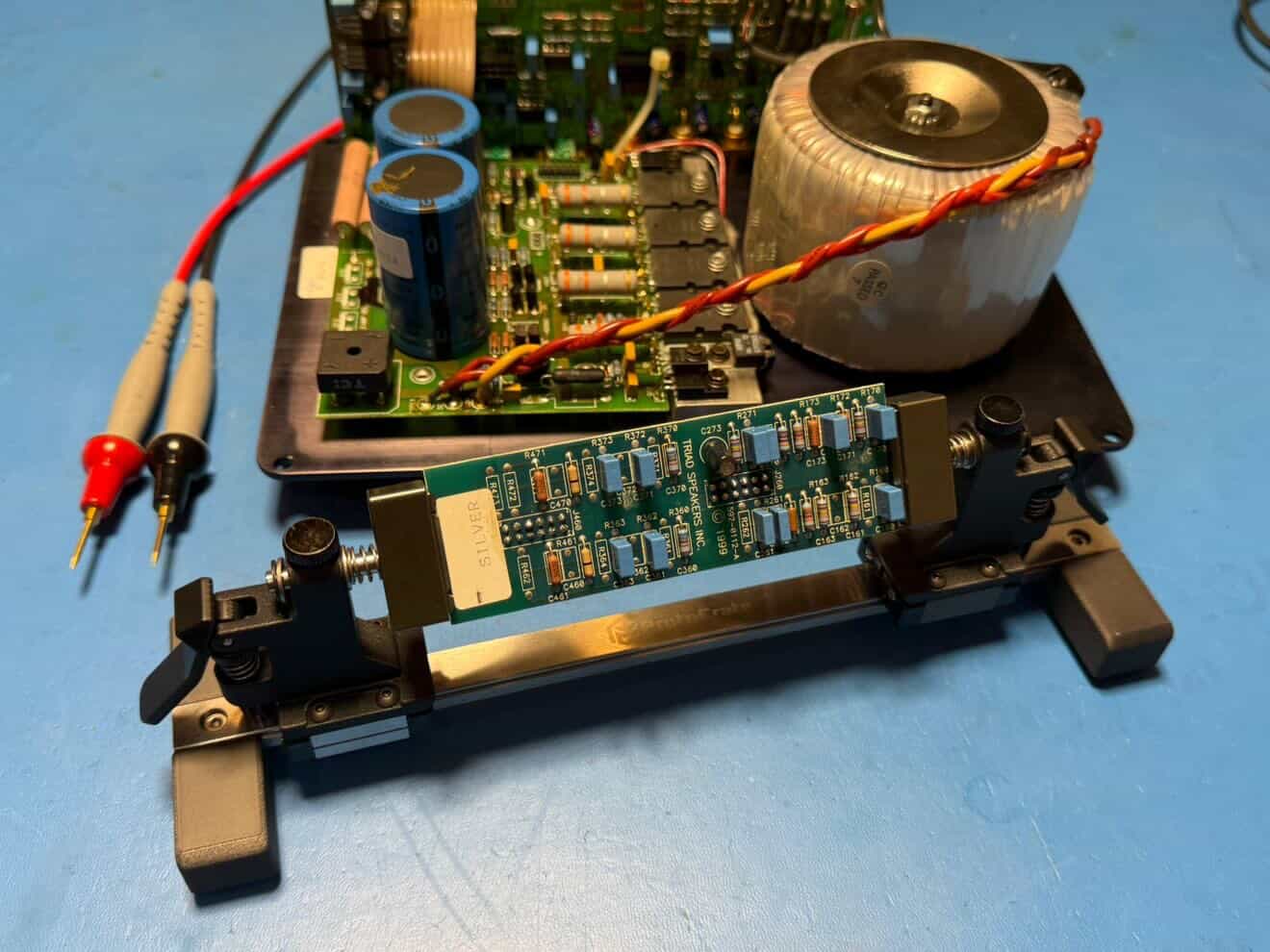

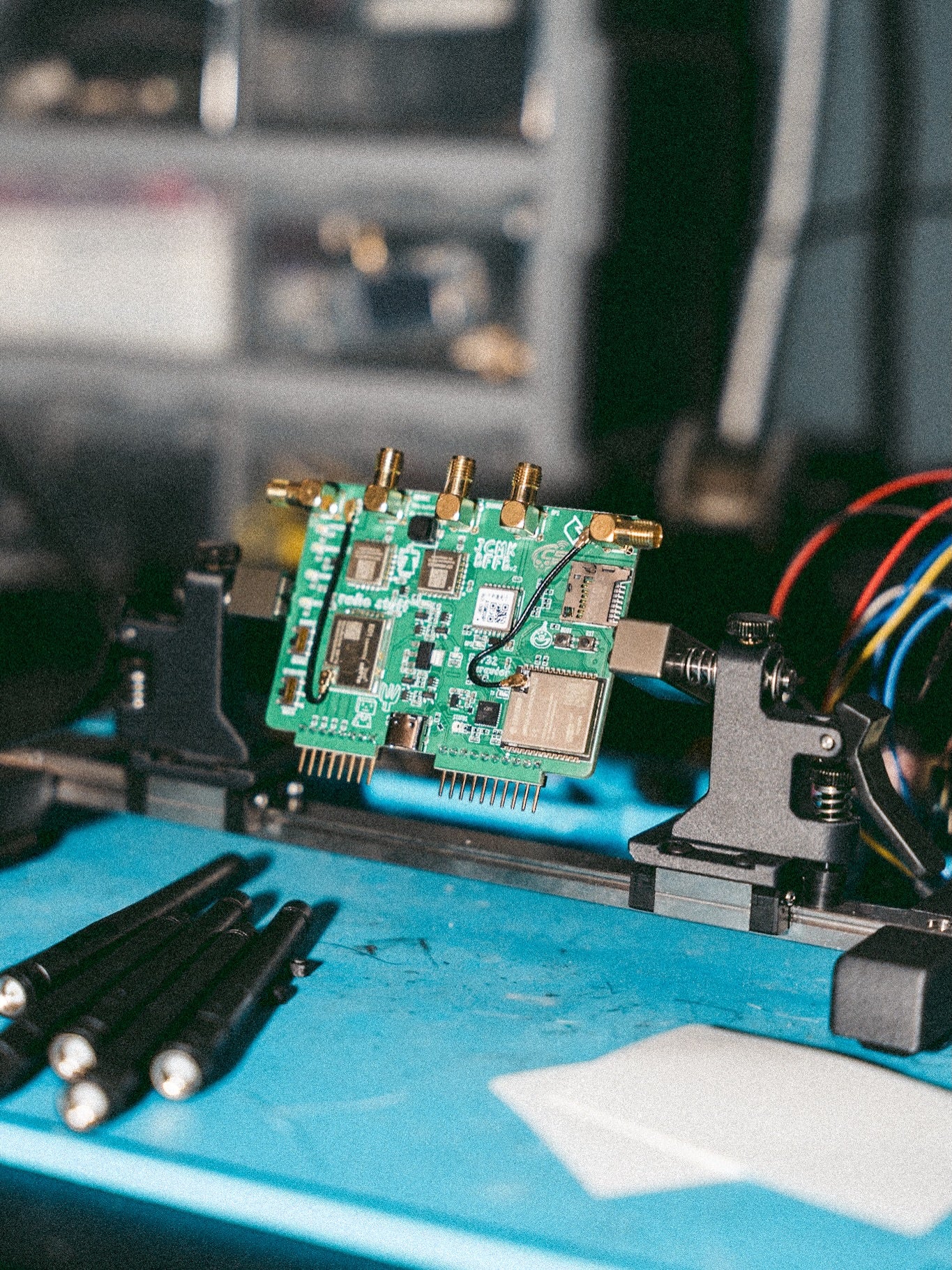

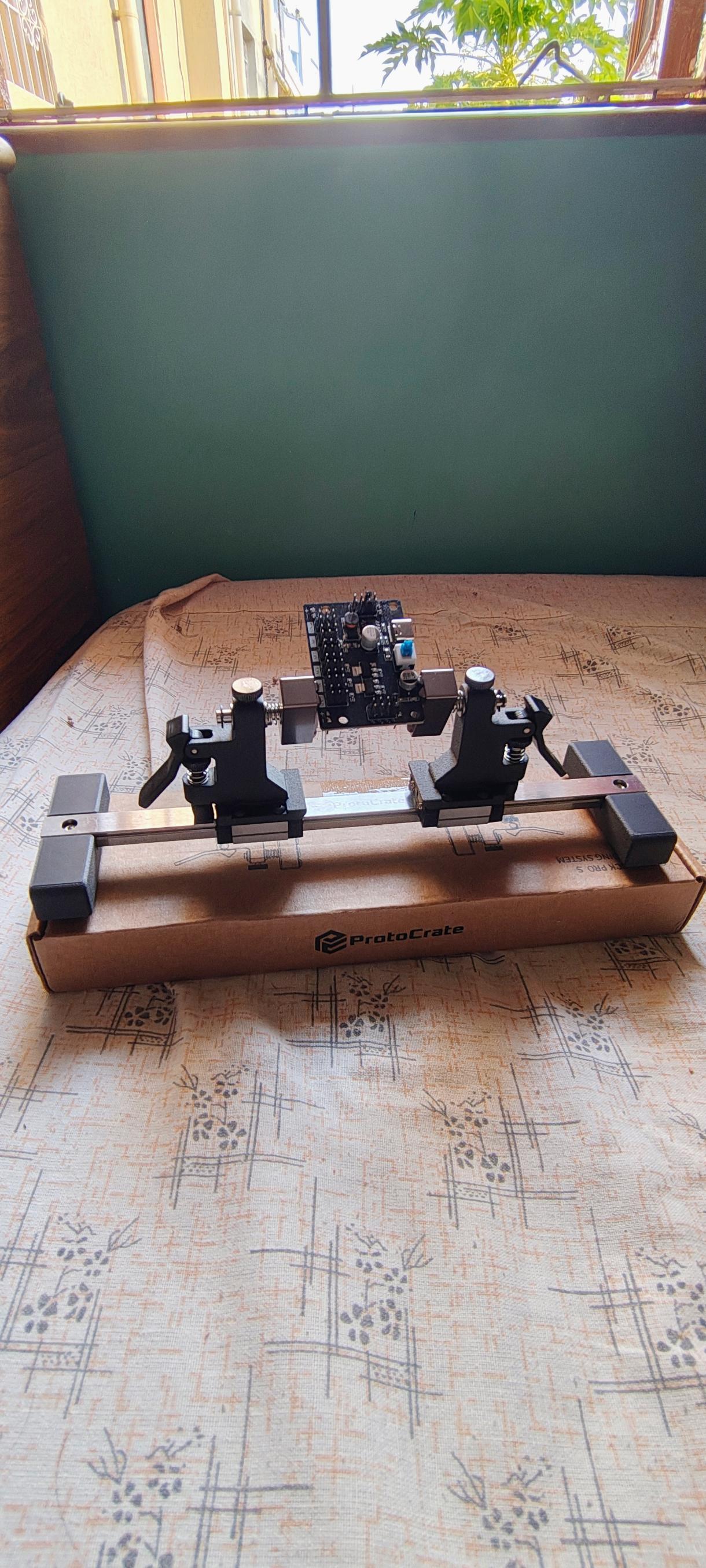

Built for Real Work Whether you're prototyping, reworking, or assembling — the Quick Lock Pro holds boards from small modules up to full-size PCBs firmly in place so you can focus on the work.
Built for reliability
Designed and tested by electrical engineers for real bench use. The frame is manufactured from robust 3D-printed ABS, with precision-milled jaws, tough resin quick-lock levers, and smooth linear rails for repeatable, enjoyable operation.
One-handed quick locking
One-handed quick-lock levers allow PCBs to be clamped and released instantly, reducing setup time and keeping both hands free for soldering and rework.
Smooth linear motion
Stainless steel linear rails provide smooth, controlled positioning, allowing clamps to slide easily and remain aligned without play.

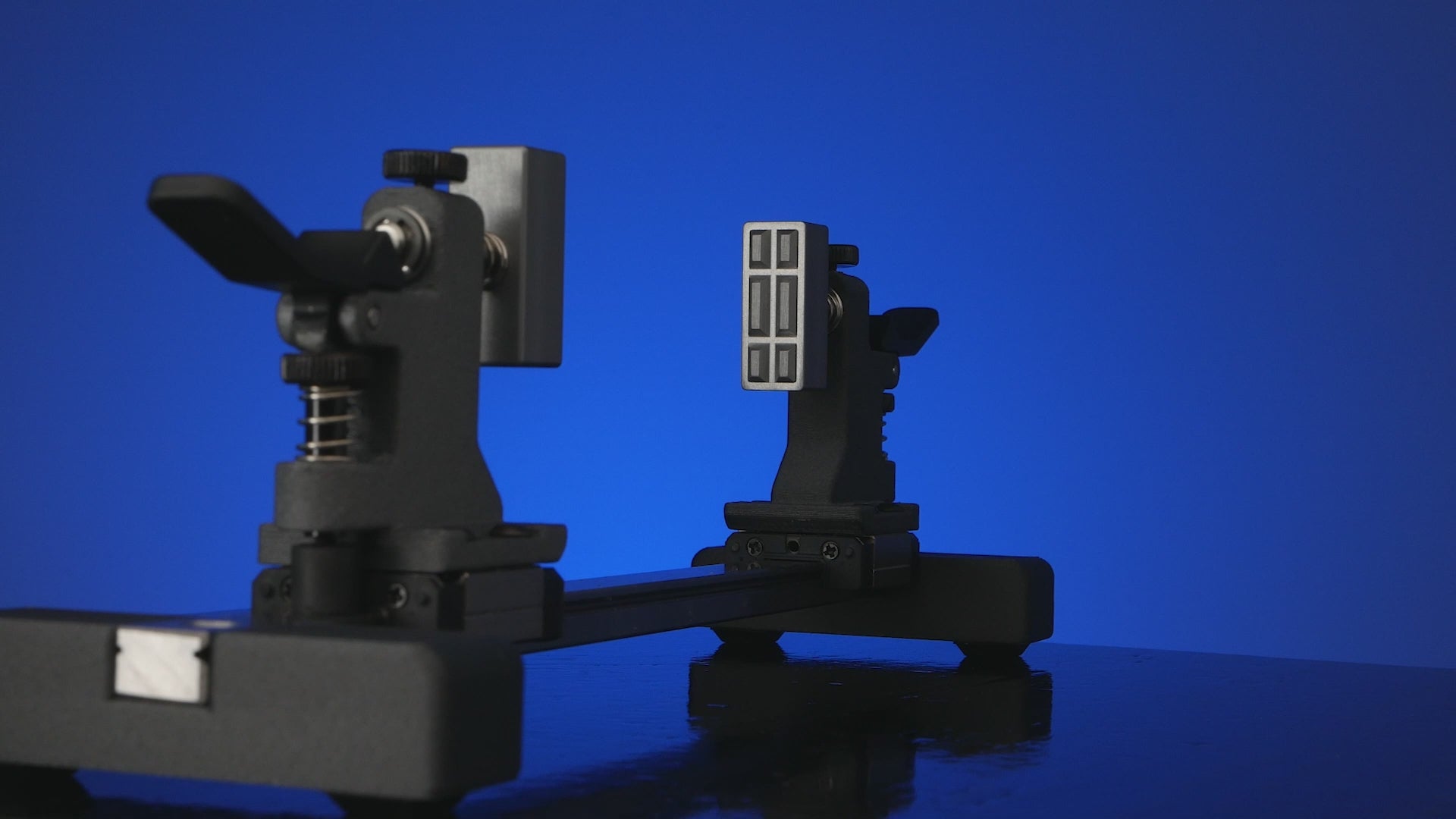

Machined aluminum jaw
Low-profile aluminum jaws securely grip PCBs up to 3 mm thick without blocking components or solder pads.
The jaw head rotates, allowing easy alignment and access from any angle.
Knob adjustment
Knobs provide fine control over jaw locking and rail clamping force.
Non-slip base
Low-profile rubber feet keep the fixture firmly in place on the workbench, preventing movement during soldering, probing, and rework.
SPECIFICATIONS
Max PCB size
- Max PCB Width: 115 mm (4.5 in)
- Max PCB Thickness: 3 mm
Materials
- 3D printed high-strength
- CNC-machined aluminum jaws
- Stainless steel hardware
- Stainless steel guide rail
Dimensions
- Overall Length: 250 mm
- Base Width: 70 mm
- Height: 80 mm
- Weight: 0.77 lbs
